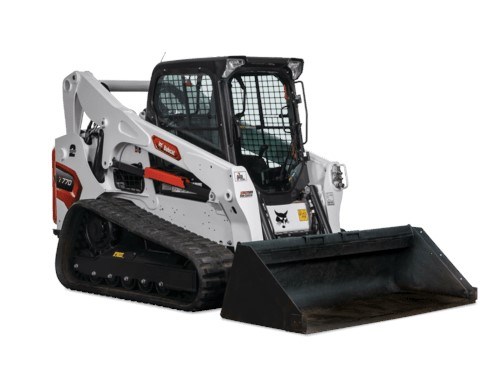

Bobcat T770
Double tap to zoom
Compact Track Loaders T770
With 11 feet of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs.
• Powerful breakout forces
• Durable undercarriage
• Superior lift arms
• Maximum headroom and legroom
• Unmatched machine versatility
Share This Product:
Features
- The Bobcat® T770 compact track loader delivers industry-leading breakout forces and rated operating capacity. The 92-hp Bobcat® engine meets Tier 4 standards without a Diesel Particulate Filter (DPF), which reduces time otherwise lost to DPF regeneration and long-term maintenance costs.
- The optional Automatic Ride Control is easily activated from the cab to cushion the bucket for less spillage and greater operator comfort.
- Engineered to protect your uptime, the T770 features cold weather protection to prevent premature component wear, Smart Cooling for efficient operations in harsh working conditions, battery run-down protection, electronic protection, protected hoses and quick couplers and more.
Specifications
Model | Bobcat T770 |
ENGINE | |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Fuel | Diesel |
Horsepower | 92 hp |
Turbocharged Engine | Optional |
PERFORMANCE | |
Rated Operating Capacity (SAE) | 3,475 lb |
Operating Capacity (50% of Tip) | 4960 lb |
Tipping Load | 9929 lb |
Operating Weight | 10515 lb |
Travel Speed | 6.6 mph |
Travel Speed (2-speed option) | 10.7 mph |
Ground Pressure (Rubber) | 4.2 psi |
CAPACITIES | |
Fuel Tank | 43.8 gal |
HYDRAULIC SYSTEM | |
System Relief @ Quick Couplers | 3,500 psi |
Auxiliary Std Flow | 23 gal/min |
Auxiliary High Flow | 36.6 gal/min |
DIMENSION | |
Length | 141.6 in |
Length without Attachment | 114.3 in |
Length with Standard Bucket | 141.6 in |
Width | 78 in |
Width (with bucket) | 80 in |
Height | 81.3 in |
Height with Operator Cab | 81.3 in |
Height to Bucket Hinge Pin | 131.4 in |
Reach @ Maximum Height | 35.2 in |
Turning Radius | 88 in |
Length of track on ground | 63.7 in |
Track Width | 17.7 in |
FEATURES | |
Joystick Control | Optional |
Air Conditioning | Optional |
Backup Alarm | Standard |
BICS System (Interlock) | Standard |
Cab Heater | Optional |
Operating Lights | Standard |
Suspension Seat | Standard |
Two Speed Travel | Optional |
Deluxe Instrumentation | Optional |
Engine Shutdown | Standard |
Hydraulic Bucket Positioning | Optional |
High Flow Option | Optional |
Auxiliary Hydraulics | Standard |
Bob-Tach Attachment System | Standard |
Power Bob-Tach | Optional |
ACS (Switchable Controls) | Optional |
Ride Control | Optional |
Horn | Standard |
